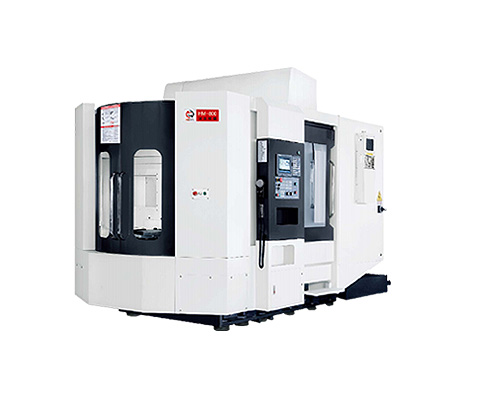

the horizontal machining center has a high-speed, high-precision, high-reliability structure, and has the characteristics of high rigidity, high power, high torque, and heavy cutting among similar equipment, which can give full play to efficient production and high-precision machining performance. powerful cutting power combined with excellent accuracy and performance makes cutting and hole-piercing simple and easy. the two-axis screw is pre-stretched, which can eliminate the transmission backlash and pre-compensate for errors caused by temperature rise, ensuring the machining accuracy of the parts.
technical parameter:
| project | unit | hm-630 | hm-800 | hm-1000 |
| working desk size | mm | 630x700 | 800x800 | 1000x1000 |
| table indexing | - | 1°x360 | 1°x360 | 1°x360 |
| table gear ratio | - | 240 | 240 | 240 |
| workbench maximum load | kg | 950 | 1500 | 1500 |
| distance from spindle centerline to worktable | mm | 120~870 | 120~1120 | 120~1120 |
| distance from spindle end to table center | mm | 130~1030 | 200~1200 | 200~1200 |
| maximum workpiece turning diameter | mm | φ900 | φ1830 | φ1830 |
| the table moves left and right (x direction) | mm | 1050 | 1600 | 1600 |
| the headstock moves up and down (y direction) | mm | 750 | 1000 | 1000 |
| the column moves back and forth (z direction) | mm | 900 | 1000 | 1000 |
| spindle maximum speed | rpm | 6000 | 6000 | 6000 |
| spindle specifications | mm | bt50/φ190 | bt50/φ190 | bt50/φ190 |
| cutting feed rate | m/min | 10〜6000 | 10〜6000 | 10〜6000 |
| three-axis rapid movement | m/min | 24000 | 24000 | 24000 |
| spindle motor (30 minutes continuously) | kw | 18.5/22 | 22/26 | 22/26 |
| positioning accuracy (jis standard) | mm | ±0.015 | ±0.015 | ±0.015 |
| repeated positioning accuracy (jis standard) | mm | ±0.01 | ±0.01 | ±0.01 |
| tool magazine capacity | 把 | 24/30 | 24/30 | 24/30 |
| cnc system | - | fanuc 0imf | fanuc 0imf | fanuc 0imf |
| required air pressure | kgf/cm² | 6 | 6 | 6 |
| electricity demand | kva | 50/60 | 50/60 | 50/60 |
| machine weight (approx.) | kg | 13000 | 18000 | 21000 |
| dimensions (excluding pedals) length x width x height | mm | 4670x3200x3600 | 4700x4100x3950 | 4760x4250x4020 |
