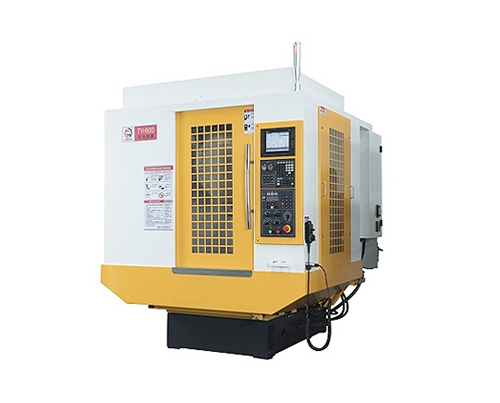

| configure | unit | tv-600 | ||
mark allow regulation grid | journey | three-axis travel x/y/z | mm | 600/400/320 |
| spindle nose to table | mm | 150-470 | ||
| spindle center to cylinder surface | mm | 425 | ||
| workbench | working desk size | mm | 700x420 | |
| t-slot | mm | 14x3x 125 | ||
| workbench load | kg | 280 | ||
| spindle unit | spindle transmission mode | - | direct | |
| spindle speed (standard) | rpm | 20000 | ||
| spindle speed (optional) | rpm | 12000/15000/24000 | ||
| spindle taper hole | - | bt-30 | ||
| spindle bearing lubrication method | - | grease lubrication | ||
| spindle cooling method | - | air-cooled/oil-cooled | ||
| three axis feed | three-axis rail design | - | ||
| three-axis track width | mm | 30/30/30 | ||
| diameter of triaxial screw | mm | φ28/φ28/φ32 | ||
| three-axis screw pitch | mm | p=12/16 | ||
| three-axis rapid traverse speed | m/min | 48/48/48 | ||
| precision jis b6228/6339 | 3-axis cutting rate | mm/min | 30000 | |
| three-axis positioning accuracy | mm | ±0.005 | ||
| three-axis repeatability | mm | ±0.003 | ||
| basic parameters | base integrated rear chip removal | backflush | ||
| machine height | mm | 2236 ±10（when the column height is not specified） | ||
| floor space (length x width) | mm | 2050x 1800 | ||
| machine weight | kg | 3000 | ||
| automatic tool changer (standard) | tool magazine capacity | pcs | 16/21 | |
| tool change method | - | clip arm / flying saucer | ||
| shank type | - | bt-30 | ||
| tool diameter (full tool / adjacent empty tool) | mm | φ60/φ80 | ||
| tool length | mm | 200 | ||
| tool selection method | - | random | ||
| tool weight | kgs | 2kg/把（gross weight 15kg）;3kg/把（gross weight22kg） | ||
| tool change time (tool to tool) | sec | 1.4（2kg/set value） | ||
