technical parameter:

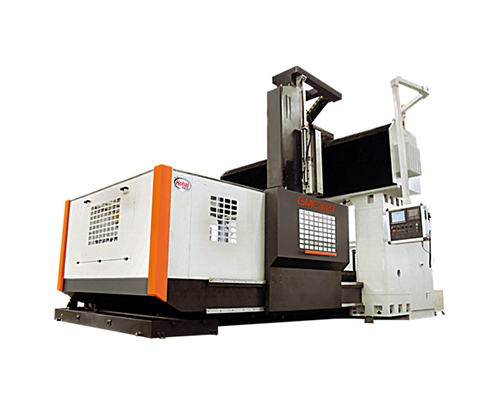

| model | unit | gmc5027a |
| workbench | ||
| workbench (length * width) | mm | 5000*2300 |
| workbench z maximum load | kg | 18000 |
| t-slot (number of slots * slot width * pitch) | mm | 11-22*200 |
| processing range | ||
| door width | mm | 2700 |
| x-axis/y-axis/z-axis/stroke | mm | 5200/2700/1000 |
| distance from spindle end face to work table | mm | 310-1310 |
| feed system | ||
| cnc system | fanuc oi mdfanuc 3g | |
| rapid displacement of x/y/z axis | m/min | 12/12/10 |
| z maximum cutting feed rate | m/min | 7 |
| automatically switch to the system (cnc milling does not have this option) | ||
| number of standard tools (pieces) | bt50/32 | |
| tool z large knife warp / length | mm | φ125/300 |
| tool exchange method | 气动 | |
| z-large tool weight | kg | 18 |
| precision | ||
| positioning accuracy | mm | 0.021 |
| repeatability | mm | 0.02 |
| rail form | ||
| x-axis guide | roller linear guide | |
| y-axis guide | roller linear guide | |
| z-axis guide | rectangular rail | |
| spindle system | ||
| spindle specifications (model/installation diameter) | bt50/φ200 | |
| spindle speed | r.p.m | 4000 |
| spindle motor power | kw | 22/26 |
| air pressure | ||
| air demand | kg/cm² | ≥6 |
| air source flow | m³/min | ≥0.5 |
| machine specifications | ||
| machine weight | kg | 51000 |
| dimensions (l*w*h) | mm | 11840*5150*4850 |
