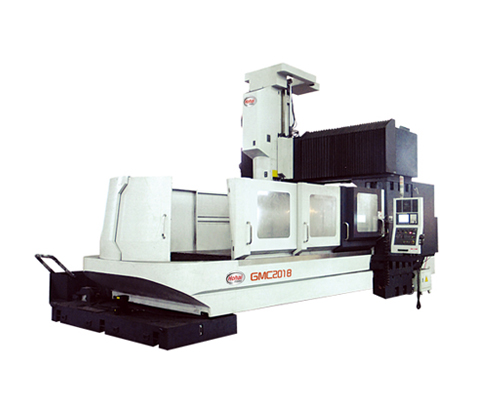

technical parameter:
| model | unit | gmc2513 | gmc2018 |
| workbench | |||
| workbench (length * width) | mm | 2700*1100 | 2000*1400 |
| workbench z maximum load | kg | 8000 | 8000 |
| t-slot (number of slots * slot width * pitch) | mm | 7-22*150 | 7-22*200 |
| processing range | |||
| door width | mm | 1300 | 1800 |
| x-axis/y-axis/z-axis/stroke | mm | 2500/1300/800 | 2500/1800/900 |
| distance from spindle end face to work table | mm | 120-920 | 150-1050 |
| feed system | |||
| cnc system | fanuc oi md | fanuc oi md | |
| rapid displacement of x/y/z axis | m/min | 12/12/10 | 12/12/10 |
| z maximum cutting feed rate | m/min | 7 | 7 |
| automatically switch to the system (cnc milling does not have this option) | |||
| number of standard tools (pieces) | bt50/24 | bt50/24 | |
| tool z large knife warp / length | mm | φ110/300 | φ110/300 |
| tool exchange method | 气动 | 气动 | |
| z-large tool weight | kg | 18 | 18 |
| precision | |||
| positioning accuracy | mm | 0.021 | 0.021 |
| repeatability | mm | 0.02 | 0.02 |
| rail form | |||
| x-axis guide | roller linear guide | roller linear guide | |
| y-axis guide | roller linear guide | roller linear guide | |
| z-axis guide | rectangular rail | roller linear guide | |
| spindle system | |||
| spindle specifications (model/installation diameter) | bt50/φ190 | bt50/φ190 | |
| spindle speed | r.p.m | 6000 | 6000 |
| spindle motor power | kw | 15/18.5 | 22/26 |
| air pressure | |||
| air demand | kg/cm² | ≥6 | ≥6 |
| air source flow | m³/min | ≥0.5 | ≥0.5 |
| machine specifications | |||
| machine weight | kg | 19000 | 19000 |
| dimensions (l*w*h) | mm | 7150*3120*4130 | 5400*4050*3870 |
