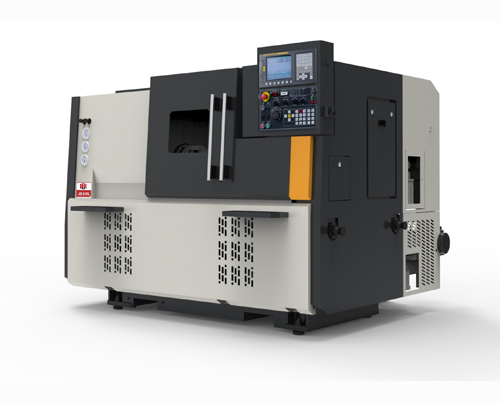

je 50l inclined bed lathe
detailed introduction:

turning diameter: ①290(350)mm;

spindle speed: 3500rpm:

x-axis and z-axis travel: 180mm & 500mm

the je series is a range of precision, durable and extremely cost-effective cnc machine tools, specially designed and built to take better advantage of the functions of the cnc system, such as rapid traverse speeds, high chip parameters, constant surface speed and more. machine tool parts such as ball screws, bearings, numerical control systems and transmission devices are selected from existing products in the world, and a special team composed of professional and skilled technologies completes the assembly of the machine tool under the guidance of experts.


三线加工中心

main feature:

made of 25-grain cast iron, age-treated, with stiffeners to ensure sufficient rigidity, and a bed designed for easy chip evacuation.

•the two axes use japan/germany/taiwan high-precision linear guides, and both x and z axes use high-precision ball screws with reasonable spacing, automatic lubrication, and high stability.

two axes with 30m/min rapid traverse speed, power chuck or standard fixture system, high-efficiency and high-precision servo turret.

• hollow spindle, the spindle is assembled and tested in a controlled clean environment, with high precision bearings at the front and rear ends, and the bearings are lubricated with grease.

• hydraulic tailstock, programmable, the tailstock is supported by a v-rail and a flat rail.

•the system adopts japanese original fanuc frank, 10.4-inch led color screen, multi-language display.




cnc加工中心

三线加工中心

cnc加工中心


technical specifications:


itemje 50l
capacityswing over bedφ550
chuck sizeφ210mm (8")
maximum turning diameterφ290/(350)mm
maximum turning length with chuck400mm
bar capacityφ51mm
主main spindlemax.spindle speed3500rpm
bore throngh spindleφ63mm
spindle nosea2-6
structure of spindlecartridge
spindle power cont11kw
spindle power intermediate 15 mins rating15kw
刀turretno.of stations12/(8)
tool cross section25x25-φ40
tool cross mechanismstp-80
axis x&zguide ways typelm
rapid traverse rate30m / min
feed rate0-10000mm
(stroke )x180mm
(stroke )z500mm
ball screw pith32x10
hydraulic max operating pressure bar30
tank capacity40liter
pump capacity14lpm
tailstocktaper in quillmt-4
revolving centre typeadd on
quill diameterφ80 mm
tailstock base travel295mm
quill travel100mm
coolant systemcoolant tank capacity150 liters
otherpower supply20kva
machine weight without packing3800kg
(lx wx h ) overall dimension2303x1812x2013
